KVM-based Nested Virtualization

글쓴이 : 최고관리자 날짜 : 2015-09-02 (수) 13:06 조회 : 8703

글주소 :

http://docs.openstack.org/developer/devstack/guides/devstack-with-nested-kvm.html#expose-virtualization-extensions-to-devstack-vm

가상화로 구현된 VM 내에 가상화로 구성하는걸 nested virtualization이라고 합니다.

HOST

nested KVM 커널변수값 확인

root@ubuntu:~# cat /sys/module/kvm_amd/parameters/nested

KVM AMD 커널모듈 제거하고 리부팅 이후에도 nested 가상화가 지원될수 있게 커널모듈 추가

root@ubuntu:~# lsmod |grep kvm

kvm_amd 60026 0

kvm 455843 1 kvm_amd

root@ubuntu:~# rmmod kvm-amd

root@ubuntu:~# lsmod |grep kvm

kvm 455843 0

root@ubuntu:~# sh -c "echo 'options amd nested=1' >> /etc/modprobe.d/dist.conf"

root@ubuntu:~# modprobe kvm-amd

root@ubuntu:~# modinfo kvm_amd | grep -i nested

parm: nested:bool

root@ubuntu:~# cat /etc/lsb-release

DISTRIB_ID=Ubuntu

DISTRIB_RELEASE=14.04

DISTRIB_CODENAME=trusty

DISTRIB_DEscRIPTION="Ubuntu 14.04.3 LTS"

root@ubuntu:~# egrep '(svm|vmx)' /proc/cpuinfo

flags : fpu de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 syscall nx lm nopl pni cx16 popcnt hypervisor lahf_lm svm abm sse4a vmmcall

root@ubuntu:~# mkdir -p /var/kvm/smileserv_img1

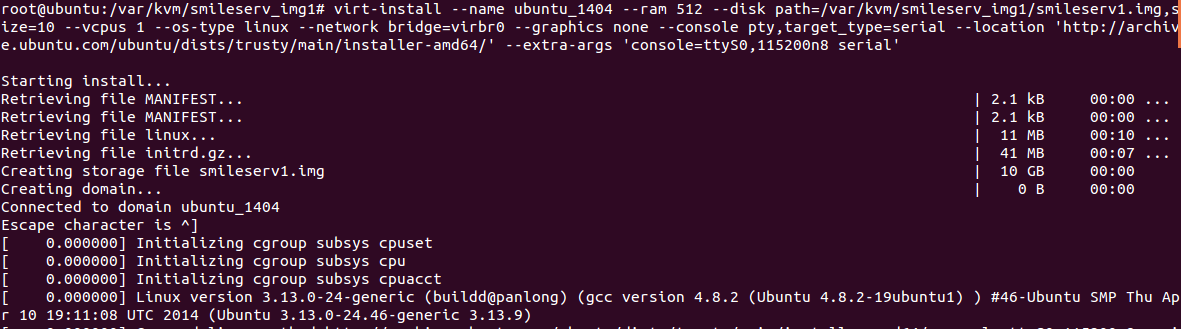

root@ubunut:~# virt-install --name ubuntu_1404 --ram 512 --disk path=/var/kvm/smileserv_img1/smileserv1.img,size=10 --vcpus 1 --os-type linux --network bridge=virbr0 --graphics none --console pty,target_type=serial --location 'http://archive.ubuntu.com/ubuntu/dists/trusty/main/installer-amd64/' --extra-args 'console=ttyS0,115200n8 serial'

※ osinfo-query os

# apt-get install libosinfo-bin

Short ID | Name | Version | ID

----------------------+----------------------------------------------------+----------+-----------------------------------------

altlinux1.0 | Mandrake RE Spring 2001 | 1.0 | http://altlinux.org/altlinux/1.0

altlinux2.0 | ALT Linux 2.0 | 2.0 | http://altlinux.org/altlinux/2.0

altlinux2.2 | ALT Linux 2.2 | 2.2 | http://altlinux.org/altlinux/2.2

altlinux2.4 | ALT Linux 2.4 | 2.4 | http://altlinux.org/altlinux/2.4

altlinux3.0 | ALT Linux 3.0 | 3.0 | http://altlinux.org/altlinux/3.0

altlinux4.0 | ALT Linux 4.0 | 4.0 | http://altlinux.org/altlinux/4.0

altlinux4.1 | ALT Linux 4.1 | 4.1 | http://altlinux.org/altlinux/4.1

altlinux5 | ALT Linux 5.0.0 Ark | 5.0 | http://altlinux.org/altlinux/5

altlinux6 | ALT Linux 6.0.0 Centaurus | 6.0 | http://altlinux.org/altlinux/6

altlinux7 | ALT Linux 7.0.0 Centaurus | 7.0 | http://altlinux.org/altlinux/7

centos6.0 | CentOS 6.0 | 6.0 | http://centos.org/centos/6.0

centos6.1 | CentOS 6.1 | 6.1 | http://centos.org/centos/6.1

centos6.2 | CentOS 6.2 | 6.2 | http://centos.org/centos/6.2

centos6.3 | CentOS 6.3 | 6.3 | http://centos.org/centos/6.3

centos6.4 | CentOS 6.4 | 6.4 | http://centos.org/centos/6.4

.............................................................................................................................................
